Corvette

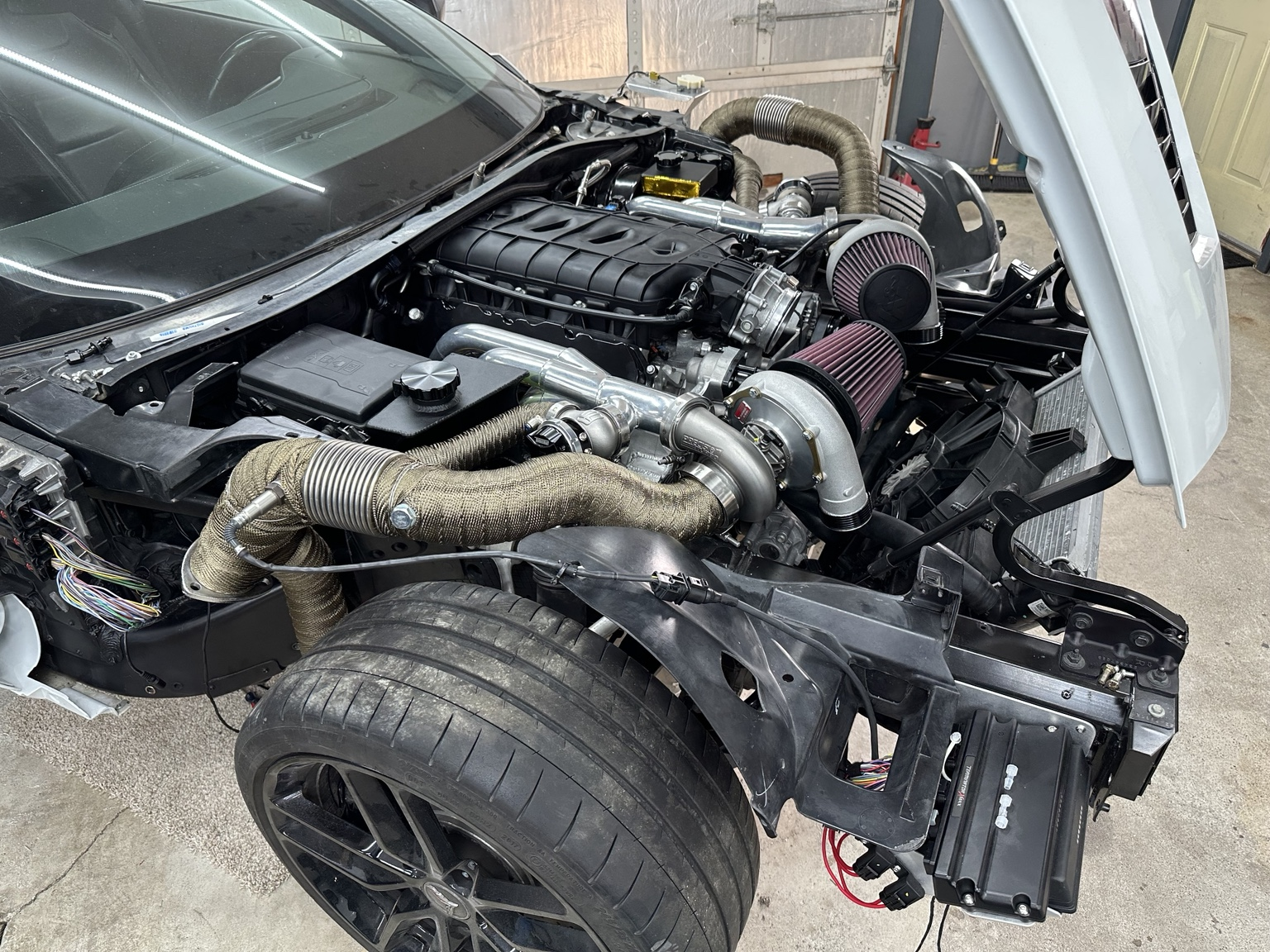

This customer C7 Corvette is a twin-turbo build that has involved a lot of custom fabrication and wiring. It's running a Holley Terminator X Max with custom plumbing and wiring throughout. The car is recently finished, we just completed the A/C lines, and are preparing the car for delivery to its owner.
Complete
Status
Complete
Last Updated
June 29, 2026
Completion
100%
Finished the A/C lines, now preparing the car for delivery.
Gallery
Build Journal
- June 29, 2026

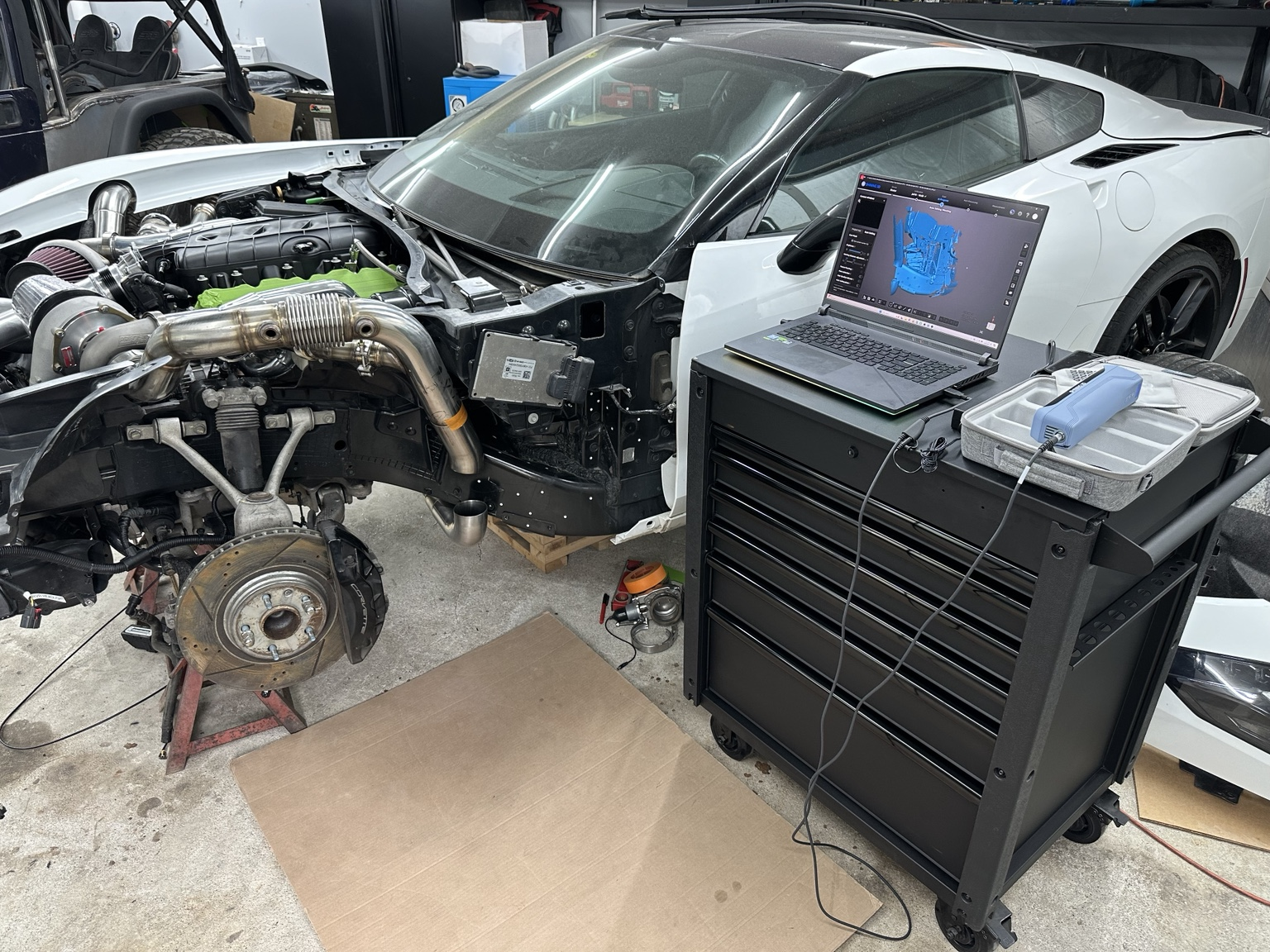

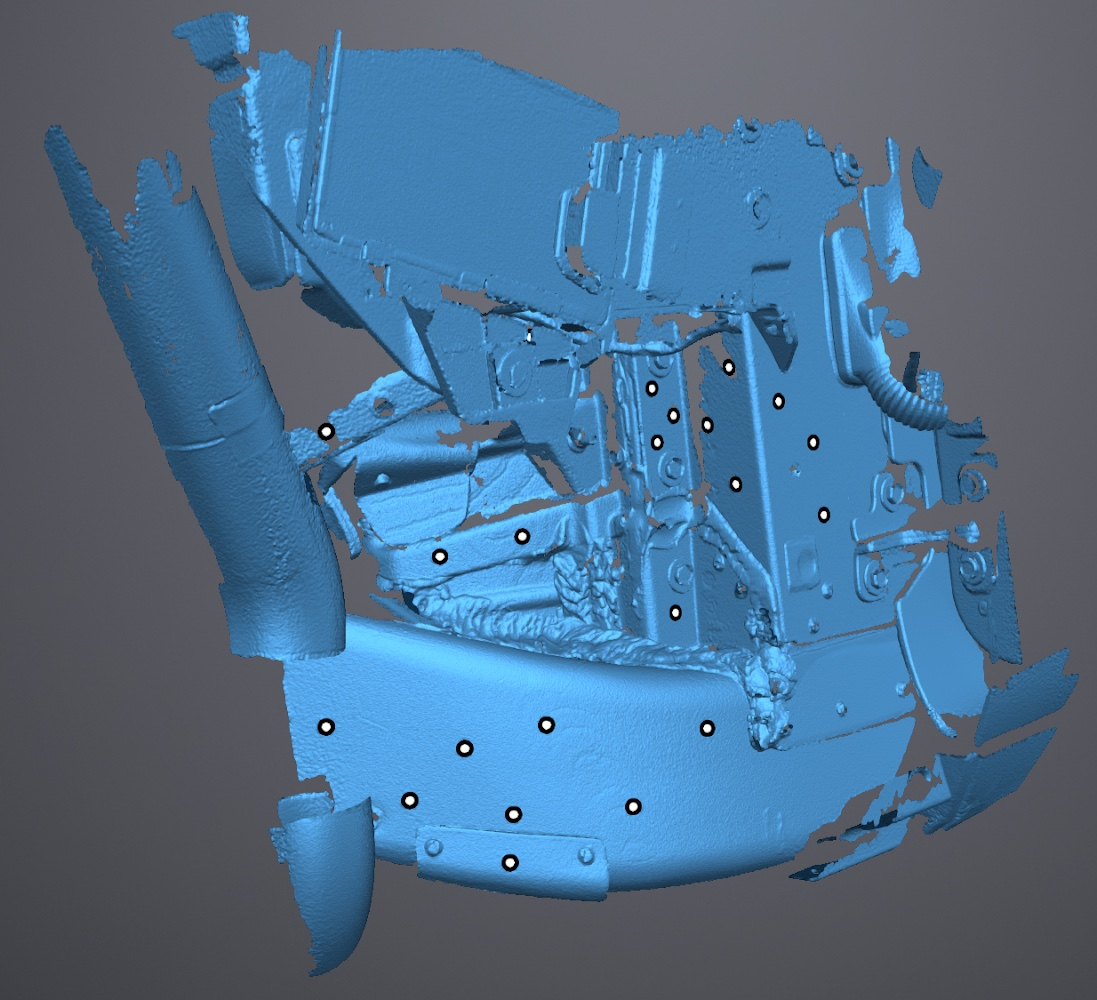

3D Scan Reverse Engineering Workflow

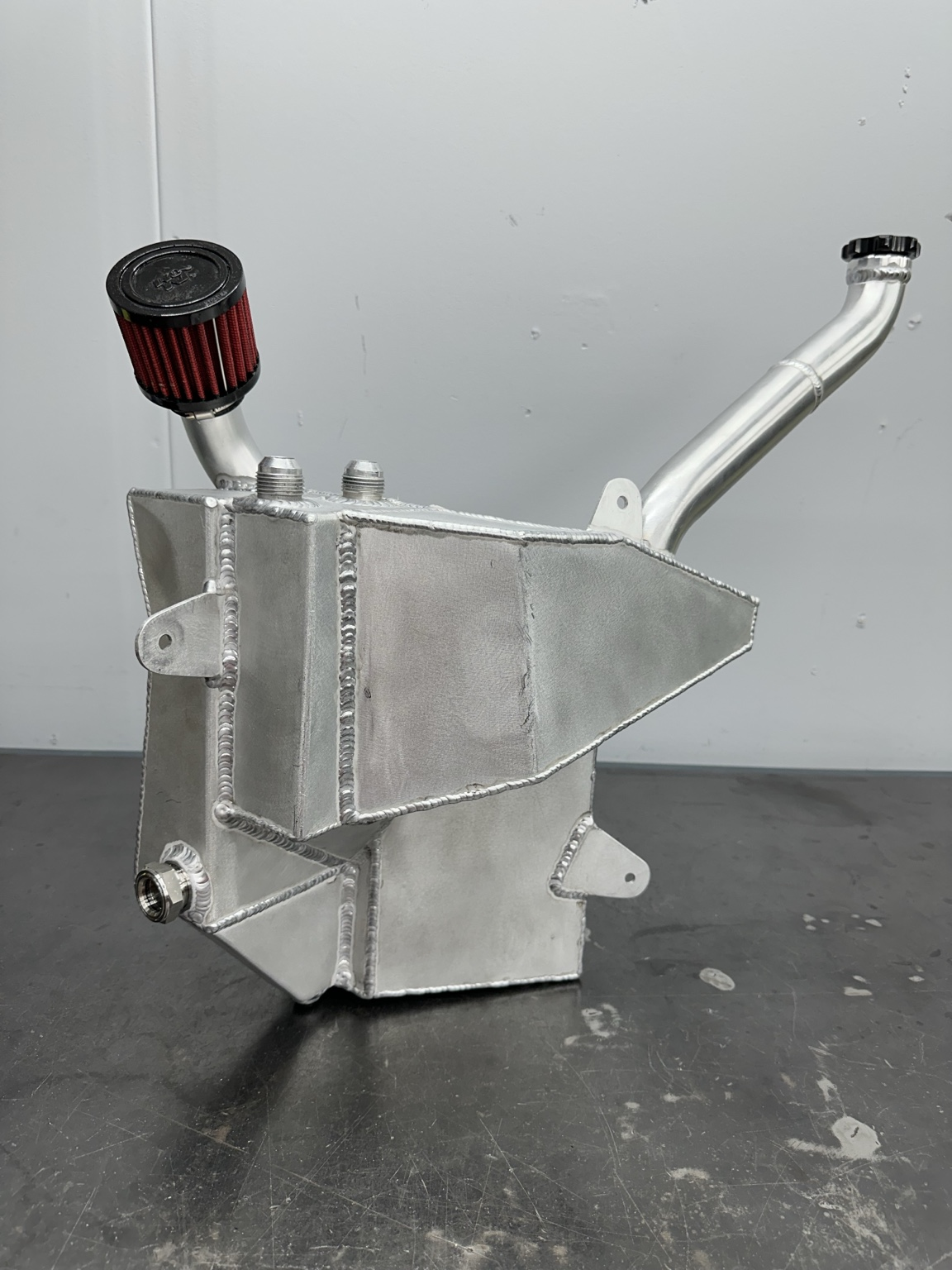

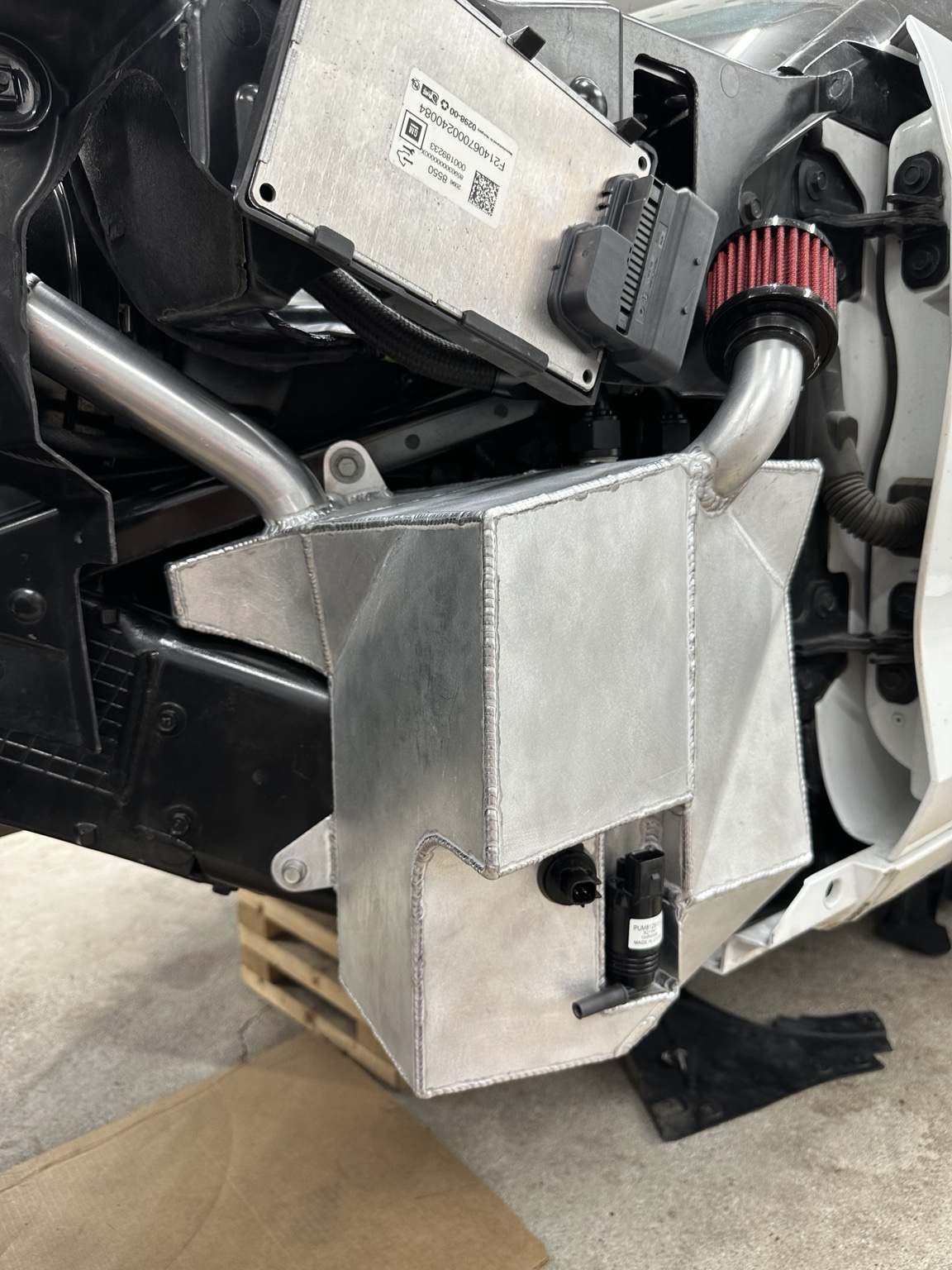

Designing a custom combination washer fluid and oil catch can package to fit where the factory washer fluid tank was, while retaining 1.5 gallons of capacity and adding a dual 12AN-bung oil catch can with a 1.5-inch breather through superfluous baffling.
CAD3D ScanReverse EngineeringFabricationOil Catch Can - June 29, 2026
In the Shop

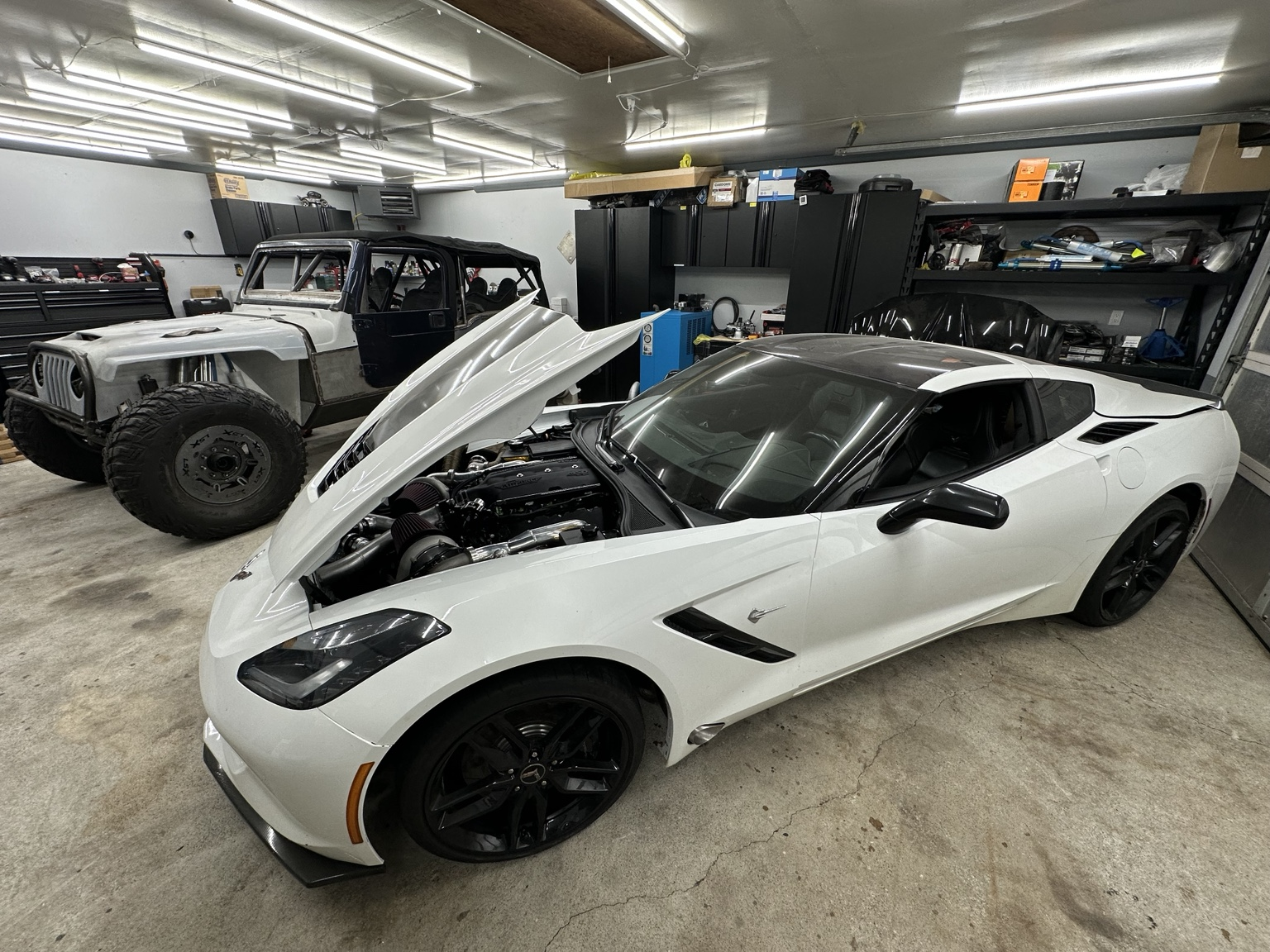

Latest look at the twin-turbo C7 build in the shop alongside the tube-chassis Jeep.
